PIAGGIO Beverly 300ie - Owner's Manual > Accessing the fuel tank

Raise the lock protection tab on the fuel tank cap. Insert the key and turn anticlockwise to remove the cap.

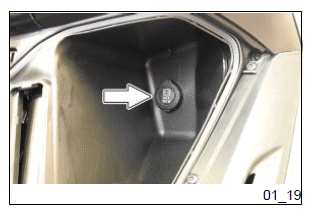

Power supply socket

There is a plug socket inside the front case.

The plug socket may be used for external consumers (mobile phone, inspection light, etc.).

CAUTION

PROLONGED USE OF THE PLUG SOCKET MAY RESULT IN PARTIAL DISCHARGE OF THE BATTERY

Electric characteristic

Plug socket
12 V - 180 W MAX

Opening the saddle

With the key in position "OFF" or "ON" or with the engine ON, you can electrically open the saddle by pressing button "A". If the electric opening does not work, use the emergency lever B.

Identification

Identification registration numbers are made up of a prefix and a number embossed on the chassis and on the engine. These numbers must always be quoted when ordering spare parts. We recommend checking that the chassis registration number stamped on the vehicle corresponds with that on the vehicle documentation.

CAUTION

BE REMINDED THAT ALTERING IDENTIFICATION REGISTRATION NUMBERS CAN LEAD TO SERIOUS PENAL SANCTIONS (IMPOUNDING OF THE VEHICLE, ETC.).

Chassis number

To read the chassis number, remove the port A in the front case.

Engine number

The engine number "B" is stamped near the rear left shock absorber lower support.

Rear top box opening

Insert the key into the switch and press down until the glove compartment opens. In the event that the switch is in "LOCK", turn the key to "OFF" or "ON" before pressing it.

Bag clip

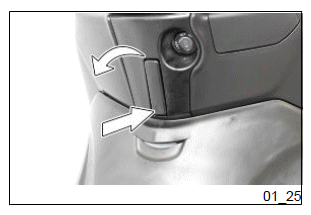

To use retractile bag hook mounted on the leg shield back plate, it is necessary to turn it towards the rear part of the vehicle pressing where indicated by the arrow.
