PIAGGIO Beverly 300ie - Service manual > Components arrangement

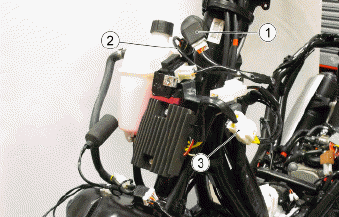

- Starter switch: remove the legshield to reach them.
- Immobilizer antenna: remove the legshield to reach them.
- Regulator connector: remove the legshield to reach them.
- Spark plug: remove the spark plug inspection cover to access the spark plug.
- Battery: lift the saddle and remove the battery cover to access the battery.
- Fuses: lift the saddle and remove the battery cover to access the battery.
- relays: lift the saddle and remove the battery cover to access the battery.
- Diagnostic socket: lift the saddle and remove the battery cover to access the battery.

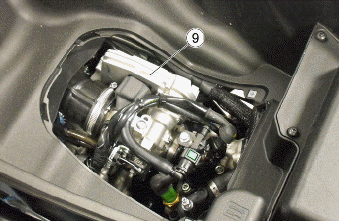

- Control unit: lift the saddle and remove the engine inspection cover to access the ECU.
- Saddle actuator: to reach it, remove the left fairing.
- H.V. coil: remove the helmet compartment to reach it.
- Starter relay: to reach it, remove the left fairing.
- Stand button: remove the left footrest to reach it.
- Stator connector: remove the central chassis cover to reach them.
- Roll-over sensor: remove the central chassis cover to reach them.
- Fuel pump: remove the central chassis cover to reach them.
- Fuel level transmitter: remove the central chassis cover to reach them.
- Horn: remove the front wheel housing to reach it.
- Temperature sensor: remove the legshield to reach them.
- LV socket: remove the legshield to reach them.
- Regulator: remove the legshield to reach them.
- Turn indicator device: remove the legshield to reach them.
Instrument panel
A= High beam warning light
B = Turn indicator warning lights
C = Fuel gauge
D = Low fuel warning light
E = Speedometer
F = Immobiliser LED
G = Coolant temperature gauge
H = Engine control telltale light
I = Engine oil pressure warning light
L = Digital display
Ground points
- Frame ground points "A" and "B". Remove the left footrest to reach them.
- Engine ground point "C"
