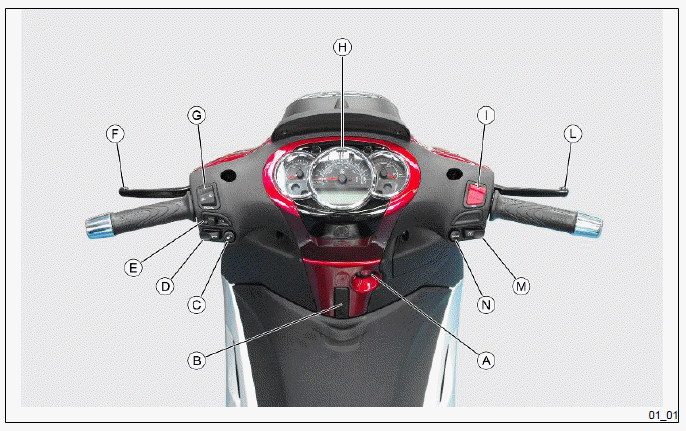

PIAGGIO Beverly 300ie - Owner's Manual > Dashboard

A = Ignition key-switch
B = Bag hook
C = Saddle opening button
D = Horn button
E = Turn indicator switch
F = Rear brake lever
G = Light switch with passing
H = Instrument panel
I = Emergency stop switch RUN-OFF
L = Front brake lever
A = Starter button
N = MODE button

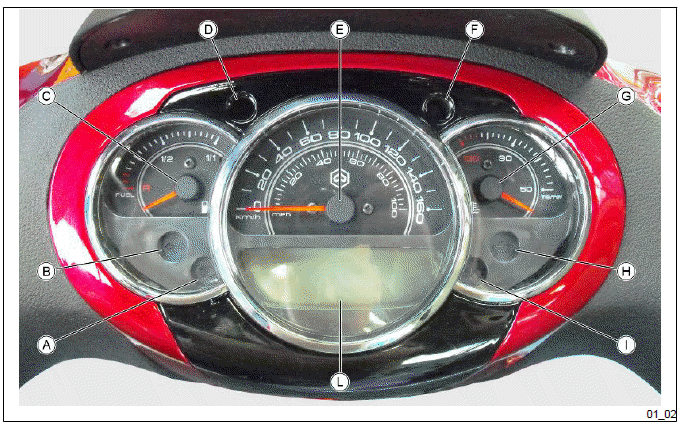

Analogue instrument panel

A= High beam warning light
B = Turn indicator warning lights
C = Fuel gauge
D = Low fuel warning light
E = Speedometer
F = Immobiliser LED
G = Coolant temperature gauge
H = Engine control telltale light
I = Engine oil pressure warning light
L = Digital display

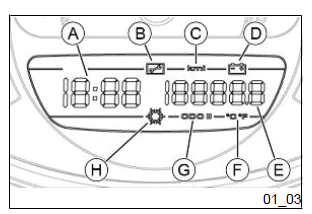

Digital lcd display

A = Clock - date
B = "SERVICE" icon
C = Kilometre-mile indicator
D = State of battery charge icon
E = Odometer indicator, partial odometer I and II, state of battery charge and cyclically selectable ambient temperature with the "MODE" button
F = Ambient temperature indicator in degrees Celsius or Fahrenheit
G = Indicator "ODO", "ODO I" or "ODO II"
H = Low ambient temperature icon

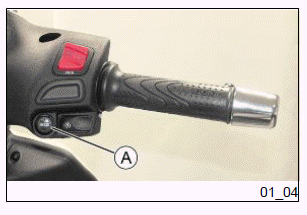

*MODE* button

Pushing the MODE button "A" for less than a second displays the following sequence of functions:

• Total Odometer "ODO"
• Partial Odometer "ODO I"
• Partial Odometer "ODO II"
• State of battery charge
• Ambient temperature "º"

To reset the trip odometer, move "ODO I" or "ODO II" and press for more than three seconds the button MODE "A".
