Vespa GTS 300 HPE - Owner's Manual > Front light group
The light assembly has "LED" lights. In the event of malfunction, we recommend contacting an Authorised Service Centre for replacement.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE TAIL LIGHT, CHECK THAT IT DISAPPEARS AFTER SOME MINUTES OF IGNITION OF THE TAIL LIGHT. IT IS A COMMON PHENOMENON AND IS ATTRIBUTABLE TO HUMIDITY AND/OR TO LOW TEMPERATURES; DOES NOT SHOW FAILURE.
THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDICATE THAT WATER IS INFILTRATING. CONTACT AN Authorised Service Centre.
CAUTION
DO NOT REST OR TRANSPORT OBJECTS AND/OR CLOTHING ON TOP OF THE FRONT LIGHT ASSEMBLY WITH THE LIGHT ON OR JUST TURNED OFF. FAILURE TO OBSERVE THIS PRECAUTION MAY CAUSE THE GLASS TO OVERHEAT AND CONSEQUENTLY MELT.

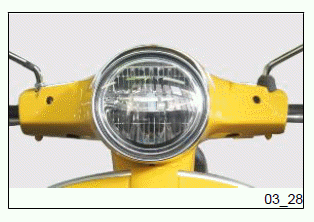

Head light adjustment
Proceed as follows:

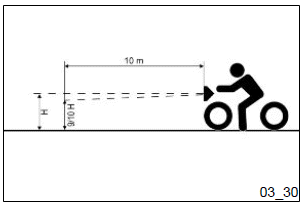

1. Position the vehicle in running order and with the tyres inflated to the prescribed pressure, onto a flat surface 10 m away from a half-lit white screen; ensure that the longitudinal axis of the vehicle is perpendicular to the screen;
2. Turn on the headlight and check that the boundary of the light beam projected onto the screen is not higher than 9/10 or lower than 7/10 of the distance between the centre of the headlight and the ground;

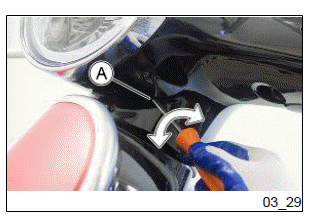

3. Otherwise, adjust the right headlight with screw "A".
N.B.
THE PROCEDURE DESCRIBED IS THAT ESTABLISHED BY EUROPEAN STANDARDS FOR THE MAXIMUM AND MINIMUM HEIGHT OF THE LIGHT BEAM. REFER TO THE STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VEHICLE IS USED.
Front direction indicators

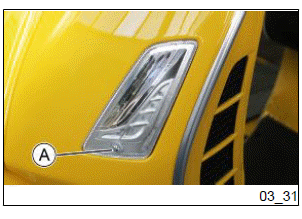

To replace the front turn indicator bulbs, remove the tail light taking out the retaining screw "A", remove the bulb holder from its fitting; gently turn the bulb around 30º and remove it. Follow the process in reverse order to refit.
Integrated in the front turn indicators are the daylight running lights of "LED" type. In the event of malfunction, we recommend contacting an Authorised Service Centre for replacement.
Rear optical unit

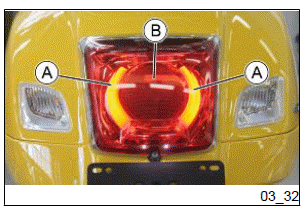

Both the parking light bulbs "A" and the brake lights "B" are "LED" type.
In the event of malfunction, we recommend contacting an Authorised Service Centre for replacement.
N.B.
IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS DOES NOT INDICATE AN ABNORMALITY AND IS RELATED TO HUMIDITY AND/ OR LOW TEMPERATURES.
IT WILL DISAPPEAR QUICKLY WHEN THE HEADLIGHT IS TURNED ON.
IF HOWEVER THERE ARE DROPS OF WATER, IT MIGHT MEAN SEEPAGE AND YOU SHOULD SEE AN AUTHORIZED SERVICE CENTRE.
Rear turn indicators

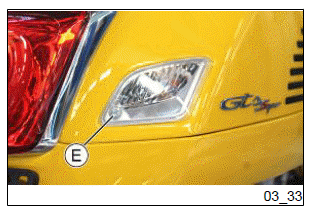

To gain access to the turn indicator bulbs, remove the fastening screws "E".
The bulbs have a bayonet coupling, to remove them press gently and twist anticlockwise about 30º. To refit follow the same steps but in reverse order.

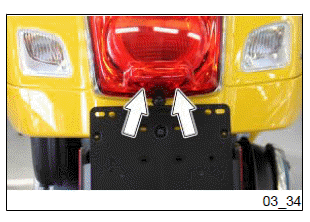

Number plate light
The licence plate lights are "LED" lights.
In the event of malfunction, we recommend contacting an Authorised Service Centre for replacement.
Rear-view mirrors

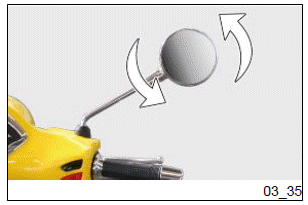

The mirrors can be set to the desired position by adjusting the mirror frame.

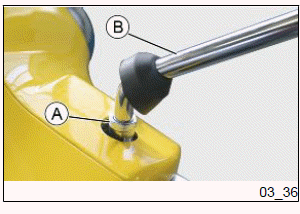

To remove the rear view mirror, lift the rubber protection, unscrew the lock nut "A" slightly to unlock the stem. unscrew the stem "b" to remove it.
CAUTION
DO NOT ADJUST THE MIRRORS WHILE DRIVING. THIS COULD CAUSE YOU TO LOOSE CONTROL OF THE VEHICLE.
CAUTION
PAY ATTENTION TO THE THREAD TYPE OF THE MIRRORS: THE RIGHT MIRROR HAS A CLOCKWISE THREAD, WHILE THE LEFT MIRROR HAS AN ANTICLOCKWISE THREAD.
