Vespa GTS Super 300 ie - Service manual > Front shock absorber
Removal
- Support the vehicle adequately.
- Remove the wheel hub.

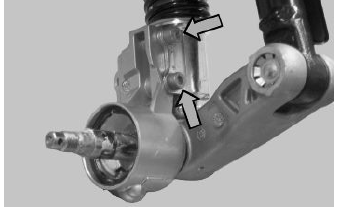

- Loosen the shock absorber lower clamps and remove the brake calliper shock absorber mounting.
- Loosen the screws fixing the front brake pipe retainer clamp and the odometer cable in order to reach the upper clamps.
- Unscrew the upper fixing nuts.
- Remove the front shock absorber.
Refitting
To refit, carry out the removal operations in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
shock absorber lower clamping 20 - 27 shock absorber upper clamp 20 to
30
Shock-absorber - calliper bracket
- Remove the front wheel hub with the brake disc
- Remove the front shock absorber lower clamps
- Remove the bracket locking Seeger ring
- Unscrew the bracket
- Before refitting the bracket in the wheel axle, place the O-ring as shown in the photograph so that it is correctly placed after fitting the bracket.
- Refit the washer and the Seeger ring.
- Refit the lower screws fixing the shock absorber to the bracket and tighten at the prescribed torque
Locking torques (N*m)
Shock absorber lower clamping 20 to 27
Overhaul
- The bracket for the shock absorber -calliper attachment has two roller bearings separated one from the other as shown in the photograph
- Remove the two roller bearings from the bracket with the specific tool operating on the shock absorber attachment side as shown in the photograph
Specific tooling
020376Y Adaptor handle
020441Y 26 x 28 mm adaptor
020365Y 22 mm guide
- Remove the oil seal on the wheel hub side with the screwdriver as shown in the photograph
- Suitably hold the brake calliper - shock absorber attachment bracket
- Fit a new oil seal and move it until it stops using the specific tool
Specific tooling
020376Y Adaptor handle
020360Y 52 x 55-mm Adaptor
- Assemble a new roller bearing on the shock absorber side and move it until it stops using the specific tool
Specific tooling
020036Y Punch
- Suitably hold the brake calliper - shock absorber attachment bracket
- Assemble a new roller bearing on the wheel hub side and move it until it stops using the specific tool
Specific tooling
020037Y Punch
Refitting
- Refit the parts in reverse order of the removal operation.
CAUTION
BEFORE CARRYING OUT REFITTING OPERATIONS IN THE AREAS MARKED WITH AN ASTERISK, LUBRICATE THEM WITH THE RECOMMENDED PRODUCT
Specific tooling
020036Y Punch
020037Y Punch
Recommended products
AGIP GREASE PV2 Ivory smooth-textured, slightly-stringy anhydrous calcium-base grease.
TL 9150 066, NATO G 460 symbol
Rear
Removing the rear wheel
- Remove the bracket supporting the rear shock absorber and the muffler;
- Remove the rear wheel by unscrewing the 5 screws indicated in the photograph
Refitting the rear wheel
To refit, carry out the removal operations but in reverse order, observing the prescribed torques.
Locking torques (N*m)
Wheel fixing screws: 20 - 25
