Suzuki Burgman 400 - Service manual > Movable Face

Refer to "Movable Drive Face Disassembly and Assembly".

Inspect the following parts.

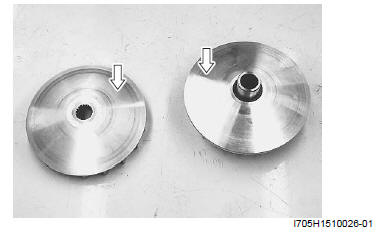

Inspect the movable face for any stepped wear on the drive face. If any defects are found, replace the drive face with a new one.

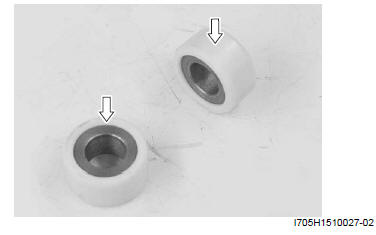

Roller Inspection

Inspect the roller for abnormal wear or other damage. If any defects are found, replace the roller with a new one.

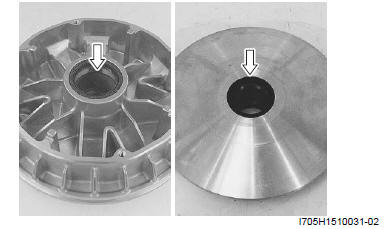

Oil Seal

Inspect the oil seal for wear or other damage. If any defects are found, replace the oil seal with a new one.

Oil Seal Removal and Installation

Refer to "V-belt Type Continuously Variable Automatic Transmission Removal and Installation" and "Movable Drive Face Disassembly and Assembly".

Removal

1) Remove the movable drive face.

2) Remove the roller.

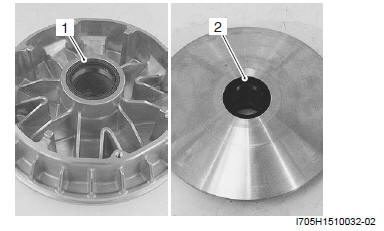

3) Remove the oil seals (1) and (2) using the special tool.

Special tool : 09913-50121 (Oil seal remover)

! CAUTION Care should be used when removing the drive face so as not to cause scratch or other damage on its surface.

Installation

1) Install the oil seal using the special tool.

Special tool : 09913-70210 (Bearing installer set)

! CAUTION Care should be used when installing the drive face so as not to cause scratch or other damage on its surface.

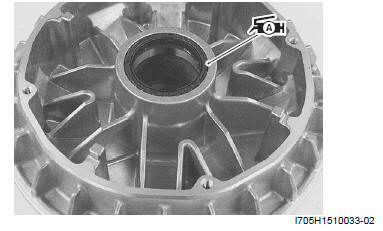

2) Apply the grease lightly on the oil seal lip.

: Grease 99000-25010 (SUZUKI SUPER GREASE A or equivalent)

! CAUTION Excess grease should be wiped off.

3) Install the roller.

4) Install the movable drive face.
