Vespa GTS Super 300 ie - Service manual > Rear/Front brake disc
Rear brake disc
Removal
- Remove the rear brake calliper.
- Remove the brake disc and the hub from the wheel axle
- To remove the brake disc from the hub, hold the unit firmly with a vice and operate on the 5 fixing screws indicated in the photograph
Refitting
- To reassemble the brake disc on the hub, carry out the removal operations in the reverse order arranging the brake disc on the hub on the side opposite the wheel keying
- Follow the direction of rotation shown by the arrow and tighten to the prescribed torque.
- Fit the hub unit
- disc in the wheel axle
Locking torques (N*m)
Disk to the hub 11 ÷ 13
Disc Inspection
- Remove the rear brake calliper.
- Check the disc thickness with a micrometer
Characteristic
Standard thickness:
3.5 mm
- Repeat the measurement at no fewer than six points on the disc.
- Check the regular nature of the rotation of the brake disc assembly using the appropriate tool fixed onto the brake calliper as shown in the photo.
- In order to be able to anchor the appropriate tool properly use a metal plate with M8 threaded hole and fix it to one of the two rear brake calliper attachment points.
- Suitably fix the flange to the wheel axle with the original nut and spacer and a Æ 17 mm bearing.
N.B.
SO AS NOT TO GET A DISTORTED READING, CAUSE THE DRIVEN PULLEY SHAFT TO TURN IN ORDER TO ROTATE THE DISC.
Specific tooling
020335Y Magnetic mounting for dial gauge
Characteristic
Max. deviation allowed:
0.1 mm
- If you detect incorrect values, replace the disc. If the anomaly persists, replace the hub.
Front brake disc
Removal
- Remove the front wheel
- Remove the front brake calliper
- Remove the hub and the disc operating on the wheel axle nut
- Hold the hub and the disc firmly and remove the brake disc undoing the six screws indicated in the photograph
Refitting
- Carry out the operations in the reverse order from the removal being careful to respect the direction of disc rotation shown by the arrow printed on it
- Tighten the six screws to the specified torque.
Locking torques (N*m)
Brake disc screws 8 ÷ 10
Disc Inspection
- Remove the front wheel
- Use a micrometer to check the disc thickness as shown in the photograph
- Repeat the measurement in at least 6 points on the disk
- Remove the front brake calliper
- In order to secure the appropriate tool adequately use a metal plate with M8 threaded hole and fix it to one of the two front brake calliper attachment points

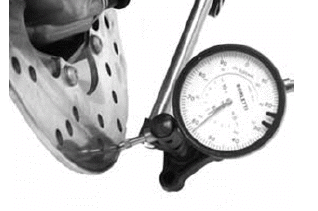

- Place the dial gauge on the disk outer edge
- Make the wheel hub turn and check the disk deviation
Specific tooling
020335Y Magnetic mounting for dial gauge
Characteristic
Standard thickness:
3.5 mm
Max. deviation allowed:
0.1 mm
