Yamaha XMAX YP125R - Service manual > Rear wheel

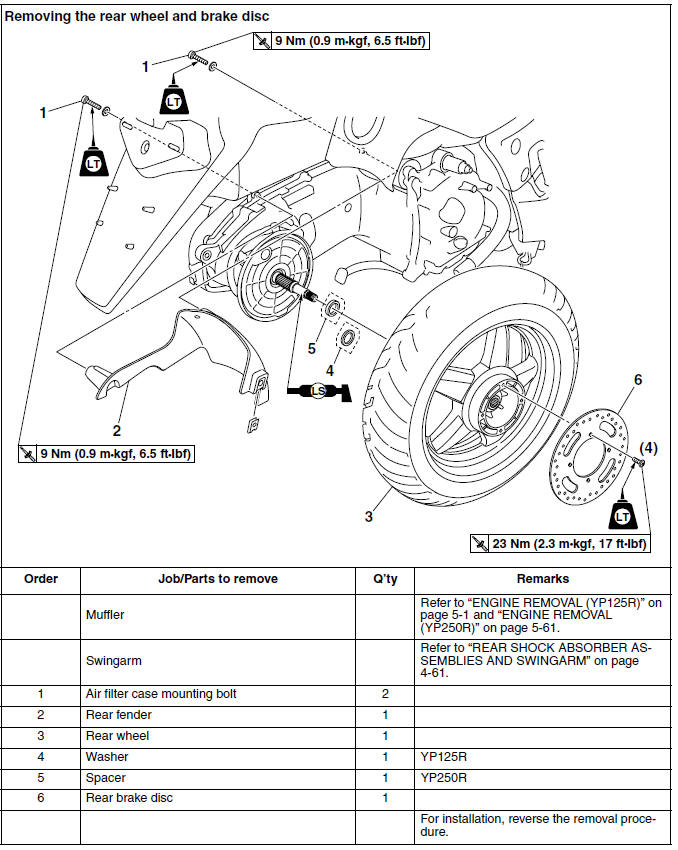

Removing the rear wheel and brake disc

Removing the rear wheel

1. Stand the vehicle on a level surface.

WARNING

Securely support the vehicle so that there is no danger of it falling over.

TIP

Place the vehicle on the centerstand so that the rear wheel is elevated. Also, place a suitable stand under the engine.

Checking the rear wheel

1. Check:

• Tire
• Rear wheel

2. Measure:

• Radial wheel runout
• Lateral wheel runout

Radial wheel runout limit 1.0 mm (0.04 in)

Lateral wheel runout limit 0.5 mm (0.02 in)

Adjusting the rear wheel static balance

• After replacing the tire, wheel or both, the rear wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the brake disc installed.

1. Adjust:

• Rear wheel static balance

Installing the rear wheel (rear brake disc)

1. Install:

• Rear brake disc

Rear brake disc bolt 23 Nm (2.3 m*kgf, 17 ft*lbf) LOCTITE

TIP

Tighten the brake disc bolts in stages and in a crisscross pattern.

2. Check:

• Rear brake disc

3. Install:

• Rear fender
• Air filter case mounting bolts

Air filter case mounting bolt 9 Nm (0.9 m*kgf, 6.5 ft*lbf) LOCTITE

TIP

Place the rear fender between the air filter case and the crankcase, and then install the air filter case mounting bolts.
