Vespa GTS Super 300 ie - Service manual > Footrest
- Remove the shield back plate
- Remove the battery compartment cover
- Remove the side fairings

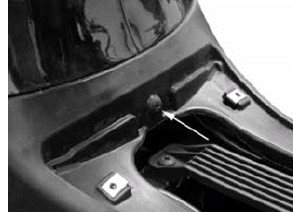

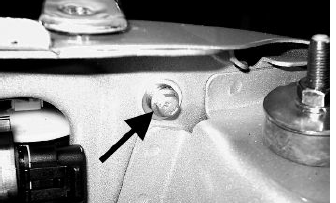

- Remove the central screw located under the battery compartment cover as indicated in the figure

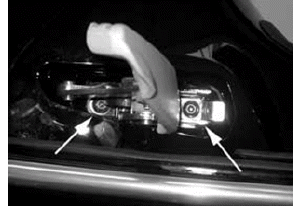

- Remove the passenger footrests undoing the two screws indicated in the figure

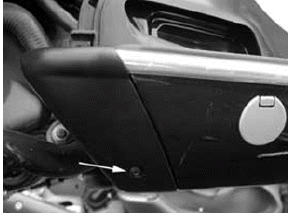

- Remove the right and left screws fixing the footrest indicated in the figure
- Remove the right and left lower covers as shown in the figure

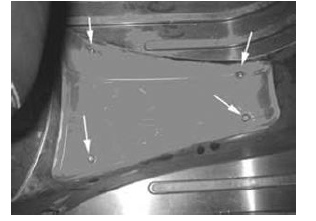

- Remove the screws under the non-slip rubber mat of the footrest as indicated in the photograph
Side fairings

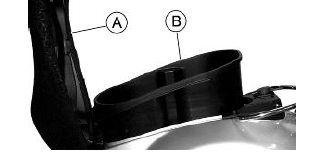

- Unscrew the fixing screw "A".
- Unscrew the nut "B" under the body.
- Lift the saddle and remove the helmet compartment.
Fuel tank
- Remove the helmet compartment
- Remove the side fairings
- Remove the luggage rack
- Remove the shock absorber upper clamps
- Remove the two screws, indicated in the figure, that fix the tank to the body

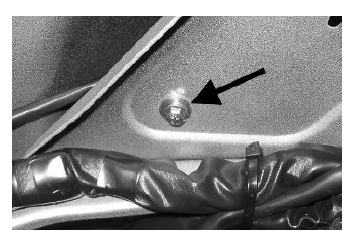

- Remove the screw indicated in the figure that fixes the tank to the body after removing the rear headlight assembly.
- Remove the two turn indicators.
- Use a jack to lift the body so that there is enough space between the vehicle rear side and the engine to slide off the tank.
To refit, perform the steps in the reverse direction to disassembly
Rear central cover

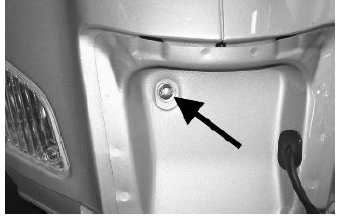

- Remove the four screws indicated in the figure.
Front mudguard
- First remove the steering tube and uncouple the front brake pipes from the calliper in order to remove the front mudguard.

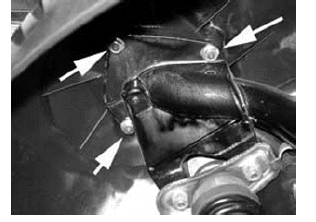

- Remove the three mudguard-steering tube clamps indicated in the figure.
