Vespa GTS Super 300 ie - Service manual > Seat

• Remove the helmet compartment

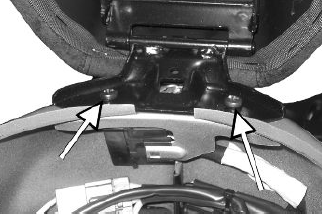

• Remove the two screws shown in the photograph
• Remove the saddle

• Remove the helmet compartment
• Remove the 2 nuts indicated in the photograph

• Free the electric cables form the retaining clamps indicated in the photograph

• Remove the saddle opening transmission cable
• Remove the saddle manual opening transmission cable.

• Remove the electric connector from the saddle opening actuator

• Remove the two screws shown in the photograph
• Remove the clip from the transmission
• Remove the actuator from the supporting bracket

Rear rack

• Remove the helmet compartment
• Remove the 4 screws indicated in the figure

• Remove the two screws, indicated in the figure, that fix the luggage rack to the body

Rear handlebar cover

• Remove the front handlebar cover
• Undo the 5 screws indicated in the photograph
• Disconnect the odometer cable
• After disconnecting the wiring remove the rear handlebar.

Instrument panel

• Remove the rear handlebar cover;
• Remove the four screws indicated in the figure
• Remove the instrument panel.

Front handlebar cover

• Remove the rear-view mirrors.
• Remove the front central cover.
• Remove the front screw indicated in the figure.

• Undo the 2 screws indicated in the figure;
• Remove the front handlebar cover
• Disconnect the front headlamp connectors

Headlight assy.

• Remove the front handlebar cover.

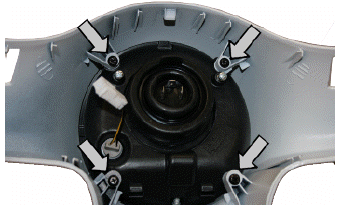

• Undo the four screws indicated.

• Operate the screw indicated in the figure to remove the front turn indicator

Knee-guard

• Remove the rear handlebar cover.
• Remove the two screws indicated in the photograph and located on the shield under the grille

• Remove the expansion tank cover and then its cap
• Remove the central screw inside the glove-box, indicated in the photograph

• Remove the two screws indicated in the photograph and located below the expansion tank cover and the left cover respectively

• Remove the shield back plate lower screws, to the right and left side of the shield back plate, as indicated in the photograph

• Remove the electric saddle opening switch, the fuse box and the manual saddle opening cable as shown in the photograph

Taillight assy.

• Operate the screw indicated in the figure to remove the rear turn indicator

Remove screw "A" to remove the rear headlight assembly.

Access to taillight bulbs, stop light bulb and license plate bulb.

To reassemble, repeat the operation but in reverse order.

N.B.

IF MISTING IS NOTICED ON THE INSIDE OF THE HEADLAMP GLASS, THIS DOES NOT INDICATE A FAULT AND IS ATTRIBUTABLE TO HUMIDITY AND/OR TO LOW TEMPERATURES.

THE PHENOMENON SHOULD QUICKLY DISAPPEAR WHEN THE LIGHT IS SWITCHED ON.

THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDICATE THAT WATER IS INFILTRATING.

CONTACT THE AFTER-SALES SERVICE NETWORK.
