PIAGGIO Beverly 300ie - Service manual > Front wheel housing

To remove the front wheel housing, proceed as follows:

• Remove the leg shield back plate;
• Remove the handlebar covers;
• Remove the fork;
• Release the indicated clamps from the wheel housing;
• Undo the three screws indicated and remove the wheel housing.

Taillight assy.

To remove the rear light assembly, proceed as follows:

• Remove the side fairings;
• Undo the three screws indicated in the figure.

Footrest

The following procedure is applicable for both sides of the vehicle:

• Unscrew the three screws indicated and remove the passenger footrest;

• Unscrew the screw fastening the footrest to the side fairing;

• Unscrew the screws fastening the footrest to the front wheel housing;

• Use a flat headed screwdriver to remove the plugs and the mat as indicated in the figure;
• Unscrew the three screws indicated and remove the passenger footrest, releasing the fastener clips.

Side fairings

Proceed as follows to remove the side fairings:

• Remove the saddle;
• Remove the rear luggage rack;

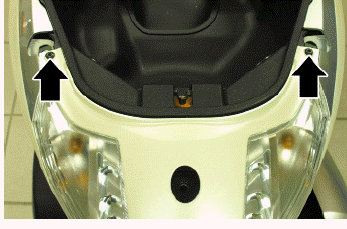

• Unscrew the two screws indicated and remove the centre rear cover;

• Unscrew the screw fastening the taillight;

• Unscrew the screw indicated in the figure;

• Unscrew the three screws indicated and remove the side fairing, complete with taillights, releasing the indicated fastener clip. Disconnect the two connectors from the taillight.

License plate holder

To remove the license plate mounting, proceed as follows:

• Remove the helmet compartment;
• Undo the three screws indicated;
• Unscrew the indicated screw and release the license plate light lamp holder.

Helmet bay

To remove the helmet compartment, proceed as follows:

• Remove the side fairings;
• Pull out the battery cables and unscrew the screw "A" and "B";

• Unscrew the two screws indicated to release the lock and detach the lock linkages from the indicated retainer in the compartment itself;

• Unscrew the two rear screws;

• Undo the indicated screw on both sides of the vehicle;

• Unscrew the two screws indicated;

• Lift the rear of the helmet compartment, disconnect the helmet compartment light connector and release the saddle release linkage retainer clip;
• Remove the helmet compartment, detaching from the fuse terminal block.
