PIAGGIO Beverly 300ie - Service manual > Legshield

To remove the front shield, proceed as follows:

• Remove the frame central cover;
• Undo the indicated screw on both sides of the vehicle;

• Remove the Piaggio clip-on badge and undo the screw underneath;

• Undo the two screws indicated and remove the expansion tank cover.
• Undo the indicated screw;

• Open the glove compartment and undo the indicated screw from both sides of the vehicle.

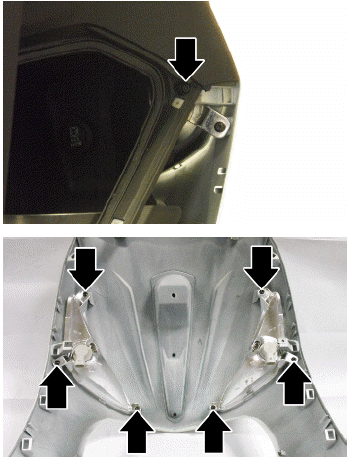

• Move the shield aside, releasing the fastener clips, and disconnect the connectors and lamp holders from the headlights;
• Unscrew the three screws indicated to remove the two headlights from the shield.

Knee-guard

To remove the leg shield back plate, proceed as follows:

• Remove the legshield;
• Unscrew the expansion tank cap;
• Unscrew the two screws indicated and release the two retainer tabs to remove the indicated cover;

• Unscrew the screw located above the emergency saddle release lever and the screw near the ignition key;

• Undo the two screws indicated in the figure;

• Disconnect the LV socket connector and the coolant return pipe from the relative seat on the leg shield back plate;
• Unscrew the screw fastening the expansion tank to the leg shield back plate, taking care not to spill any coolant;

• Detach the emergency saddle release linkage from the lever as indicated in the figure;
• Remove the leg shield back plate.

Removing the ignition key-switch when on *off*

Proceed as follows to remove the lock when in the "OFF" position:

• Remove the leg shield back plate;
• Disconnect the connector as indicated in the figure and remove the immobilizer antenna, detaching from the lock body;

• Release the indicated clip and remove the ignition key;

• Press the lock body and remove the cylinder clip as indicated;
• Release the lock body and remove the cylinder.

Removing the ignition key-switch when on *lock*

In position "Lock", it is not possible to access the cylinder retaining spring. The spring must then be removed as shown in the figure, allowing the lock spring to be pressed out.

N.B.

TO REFIT THIS ITEM, THE VEHICLE STEERING LOCK MUST BE RELEASED WITH THE LOCK BODY (INTERNAL AND EXTERNAL PART) IN POSITION "OFF". PROCEED AS DESCRIBED IN THE PREVIOUS PARAGRAPH.
