PIAGGIO Beverly 300ie - Service manual > Maintenance, Maintenance chart
RESET SERVICE WARNING LIGHT
At vehicle ignition, immediately after the ignition check, if there are less than 300 km (187.5 miles) to the next scheduled service, the corresponding icon flashes for 5 seconds. Once the service mileage has been reached, the icon remains steadily on until it is reset.
The resetting of the service is done by holding down the MODE key to the key connection for more than 10 seconds. For the first 5 seconds, the instrument panel will not give any signal, for the next 5 seconds the key icon will blink at a frequency of 1Hz. If the button is released before the 10 seconds, the service is not reset.
Maintenance chart
MAINTENANCE TABLE
I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY,
C: CLEAN,
R: REPLACE,
A: ADJUST,
L: LUBRICATE
* Replace every 2 years
** Clean frequently in cases of intensive use on gravel roads
Spark plug
Proceed as follows:
- Remove the case that grants access to the spark plug located on the right side fairing by unscrewing the indicated screw.
- Disconnect cap "A" from the spark plug HV cable by turning it clockwise until releasing it from the retainer.
- Unscrew the spark plug using the wrench supplied.
- When refitting, place the spark plug into the hole at the corresponding angle and finger tighten it as far as it will go. Use the wrench only to tighten it.
- Place cap "A" fully over the spark plug, making sure it is in the retainer again.
WARNING
SPARK PLUG MUST BE REMOVED WHEN THE ENGINE IS COLD. REPLACE THE SPARK PLUG AS INDICATED IN THE SCHEDULED MAINTENANCE TABLE. THE USE OF ELECTRONIC CENTRAL UNITS AND OF NON-COMPLIANT ELECTRONIC IGNITIONS OR SPARK PLUGS OTHER THAN THOSE PRESCRIBED MAY SERIOUSLY DAMAGE THE ENGINE.
N.B.
USE OF SPARK PLUGS OTHER THAN THE INDICATED TYPE OR UNSHIELDED SPARK PLUG CAPS CAN LEAD TO FAULTS IN THE VEHICLE 'S ELECTRICAL SYSTEM.
Hub oil
Check
- Place the vehicle on the centre stand on flat ground;
- Remove the oil dipstick "A", dry it with a clean cloth and put it back into its hole tightening it completely;
Remove the dipstick and check that the oil level is slightly over the second notch starting from the lower end; if the level is under the MAX. mark, it needs to be filled with the right amount of hub oil.
- Screw up the oil dipstick again and make sure it is locked properly into place.
Replacement
- Remove the oil filler cap "A".

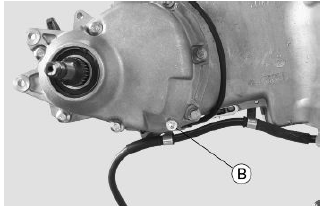

- Unscrew the oil drainage cap "B" and drain out all the oil.
- Screw in the drainage cap again and fill the hub with the prescribed oil.
Recommended products
AGIP GEAR SAE 80W-90 Lubricant for gearboxes and transmissions.
API GL-4
Characteristic
Rear hub oil
Capacity approximately 250 cc
Locking torques (N*m)
Hub oil drainage screw 15 to 17 Nm
Air filter
To access the air filter:
- Unscrew the three screws "A" and remove the air filter cover.
- Unscrew the other six screws "B" and remove the air filter cover.
1. Wash the sponge with water and mild soap.
2. Dry it with a clean cloth and short blasts of compressed air.
3. Impregnate the sponge with a mixture of 50% petrol and 50% specified oil.
4. Gently squeeze the filtering element, let it drip dry and then refit it.
CAUTION
IF THE VEHICLE IS USED ON DUSTY ROADS IT IS NECESSARY TO CARRY OUT MAINTENANCE CHECKS OF THE AIR FILTER MORE OFTEN TO AVOID DAMAGING THE ENGINE.
Recommended products
AGIP FILTER OIL Special product for the treatment of foam filters.
